Customized Sample Transfer Arms for UHV

Q: How do linear vacuum feedthroughs differ from rotary mechanisms?

Linear vacuum feedthrough technology provides straight-line motion for direct sample transfer between chambers or processing stations, offering simpler kinematics and more predictable positioning compared to rotary systems, particularly valuable in multi-chamber configurations.

Q: Can your vacuum manipulator sample transfer arms be customized?

Yes, we specialize in customized solutions including various travel lengths, mounting configurations, end-effector designs, and integration with heating/cooling systems to meet specific application requirements in your UHV system.

Q: What maintenance do sample transfer arms require?

The LOP/LRP/SLR transfer arms use Teflon guide rings that the magnet carriage rides on. These rings naturally wear over time and may require periodic adjustment to maintain smooth operation. Our user manual includes a dedicated section with step-by-step instructions on how to perform this adjustment.

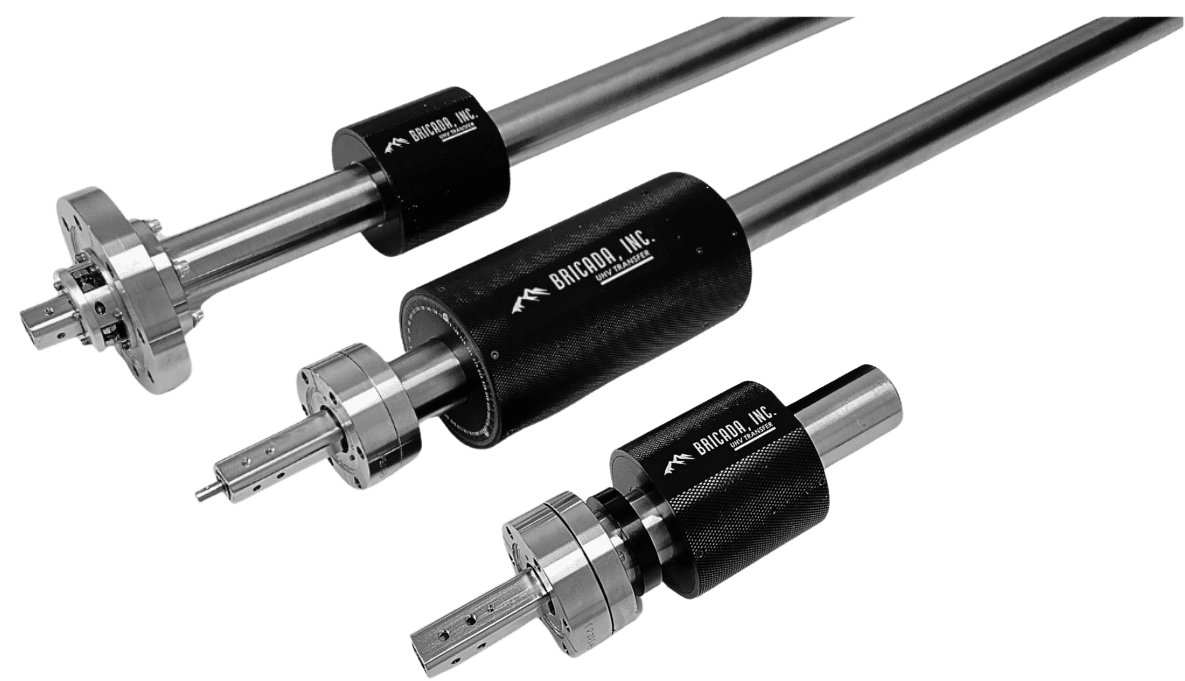

Bricada's sample transfer arms deliver uncompromising reliability for ultra-high vacuum systems, enabling seamless sample manipulation across research laboratories, semiconductor production facilities, and advanced materials characterization environments. Our vacuum manipulator sample transfer arms integrate precision-engineered linear vacuum feedthrough technology with robust mechanical design, ensuring contamination-free sample transfer in the most demanding UHV conditions.

Advanced Sample Transfer for UHV Systems

Our sample transfer for UHV systems applications are specifically designed to maintain system integrity while providing exceptional positioning accuracy and repeatability. Each vacuum manipulator features precision-machined components manufactured from ultra-clean materials compatible with extreme vacuum environments down to 10⁻¹⁰ torr. The integrated linear vacuum feedthrough mechanism enables smooth, controlled motion without compromising chamber vacuum levels, making them ideal for applications including molecular beam epitaxy, surface science analysis, thin film deposition, and semiconductor wafer handling.

Engineering Excellence in Vacuum Manipulation

Our linear vacuum feedthrough designs eliminate virtual leaks and outgassing concerns that compromise system performance. Each sample transfer arm undergoes rigorous quality testing and can be customized with various end-effector configurations, travel lengths, and mounting orientations to match your specific UHV system requirements.

Whether you need compact sample transfer for chamber-to-chamber movement or extended-reach vacuum manipulator sample transfer arms for complex multi-station systems, our engineering team develops solutions tailored to your application. We support substrate sizes from small research specimens to large-format wafers and reticles, with options for temperature-controlled transfer and load-lock integration.

Partnering for Performance

Our commitment extends beyond manufacturing exceptional sample transfer arms for UHV systems. We provide comprehensive technical support, including system integration assistance, maintenance guidance, and custom modification services. Trust Bricada's expertise to enhance your ultra-high vacuum research capabilities with reliable, precision-engineered sample transfer solutions.

Contact Bricada's engineering team today to discuss your sample transfer requirements. Whether you need a standard configuration or a fully customized vacuum manipulator solution, our experts are ready to design the perfect sample transfer arm for your ultra-high vacuum application.

Precision-engineered sample transfer arms for lab automation.

Frequently Asked Questions

What makes sample transfer arms suitable for ultra-high vacuum environments?

Sample transfer arms for UHV systems utilize specialized materials, engineering design best practices, and contamination-free construction that maintain vacuum integrity down to 10⁻¹⁰ torr while enabling smooth sample manipulation without introducing particles or outgassing.
